Rhino RX 800 EU 5

Weight 800 kg

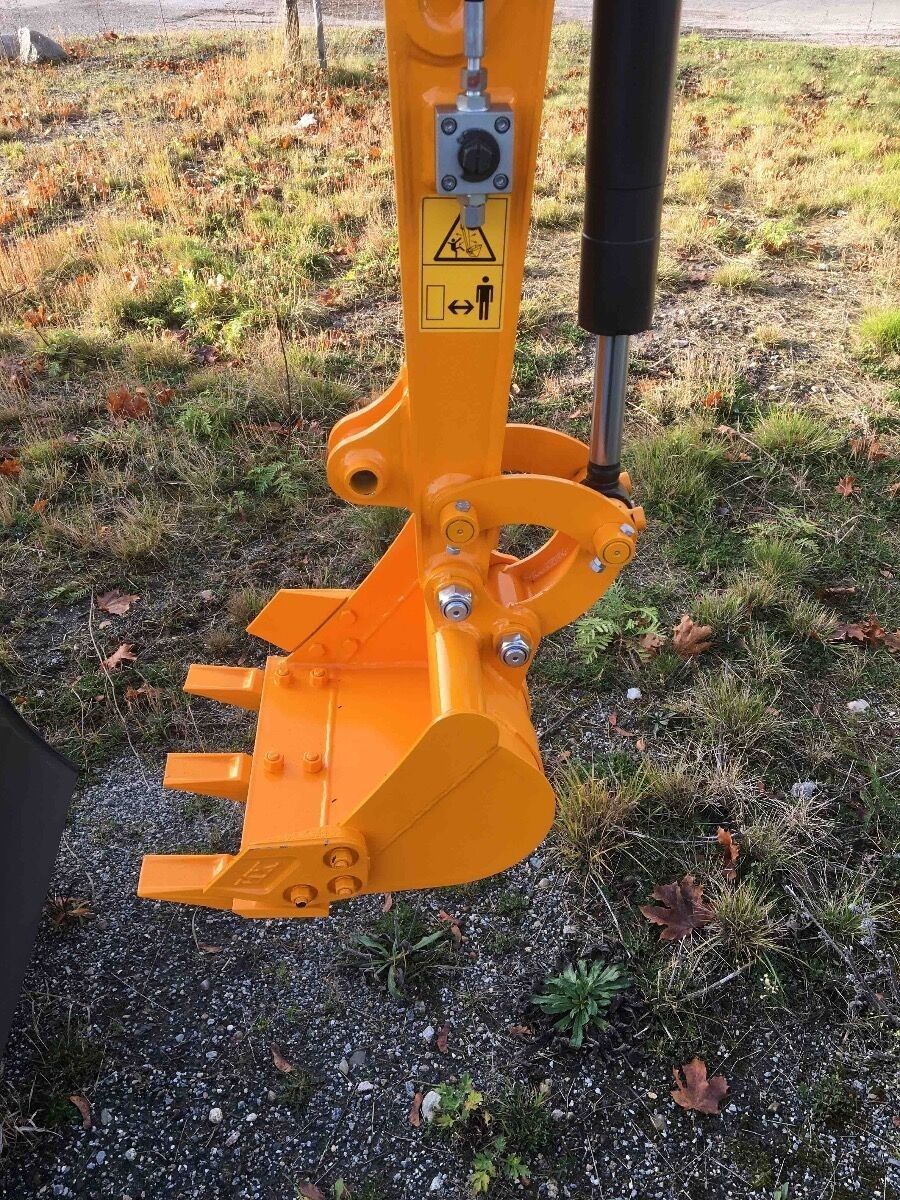

Bucket capacity 0.025 cbm / 120 kg
Excavator drawer size 350 mm
KOOP engine, power 8.6 kW / 3600 rpm (12 HP), Eu V
Hydraulics 6.8 ml/r
Engine type: Single-cylinder, air-cooled
SAISIDA main pump
Swing motor: SJ-TECH (MP-1-160)
KERSEN transfer unit (OMS-2450)
Dimensions 2,770 x 896 x 1,490 mm
Center wheel distance 910 mm
Belt length 1,230 mm
Ground clearance 380 mm
Rear turning radius 784 mm
Chassis width 896 mm
Belt width 180 mm
Chassis ground clearance 132 mm
Belt height 320 mm
Max. Digging depth 1650 mm
Max. vertical digging depth 1375 mm
Max. digging height of mini excavator 2610 mm
Max. lifting height when loading with mini excavator 1850 mm
Max. digging radius of mini excavator 2850 mm
Max. turning radius of mini excavator 1330 mm
Max. lifting height of cut-off mini excavator 345 mm
Max. digging depth of cut-off mini excavator 255 mm
